This 80-watt microphone amplifier takes your voice to the next level! The amplifier's wide frequency response makes it suitable for amplifying music or vocal program material. It can be used for live bands, office paging systems, public announcements, or a variety of other installations. It's got two front ¼' inputs for mics, each with its own independent volume control and talkover. Plus, there's two stereo RCA inputs on the back - including one that takes low level phono input from a turntable. Tone control lets you tweak the sound to your exact requirements. This amp is compatible with 70 V PA systems too. An unswitched outlet on the back means you'll never be looking for an outlet. Runs on 110 and 220 V.

DETAILS

Features:

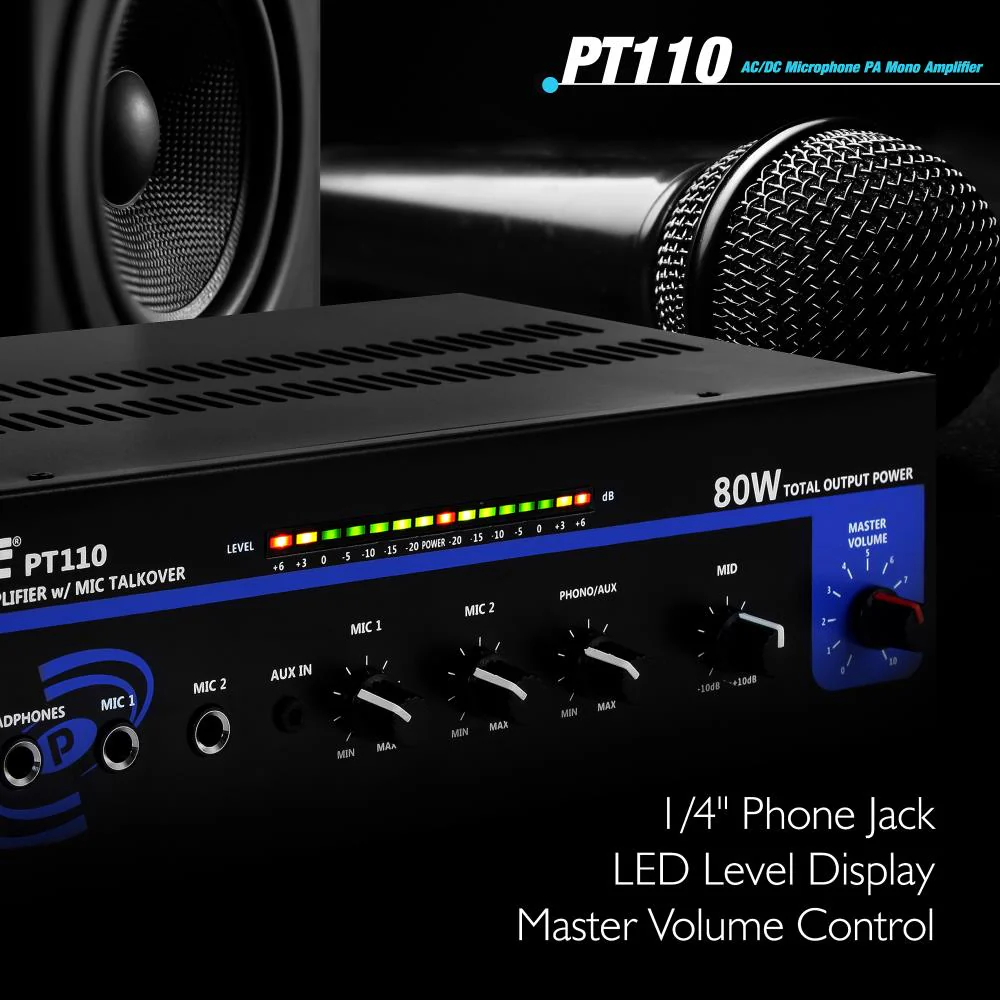

• 1/4'' Phone Jack
• LED Level Display
• Master Volume Control
• Tone Control
• Mix Bus Jacks
• Front 3.5mm AUX CD Input Jack
• MIC 1/MIC 2 Talkover
• DC 12V Inlet
• Phono/Aux Volume Control
• Mic 1 Mic 2 Volume Controls
• Mic 1 Mic 2 6.35mm Connectors

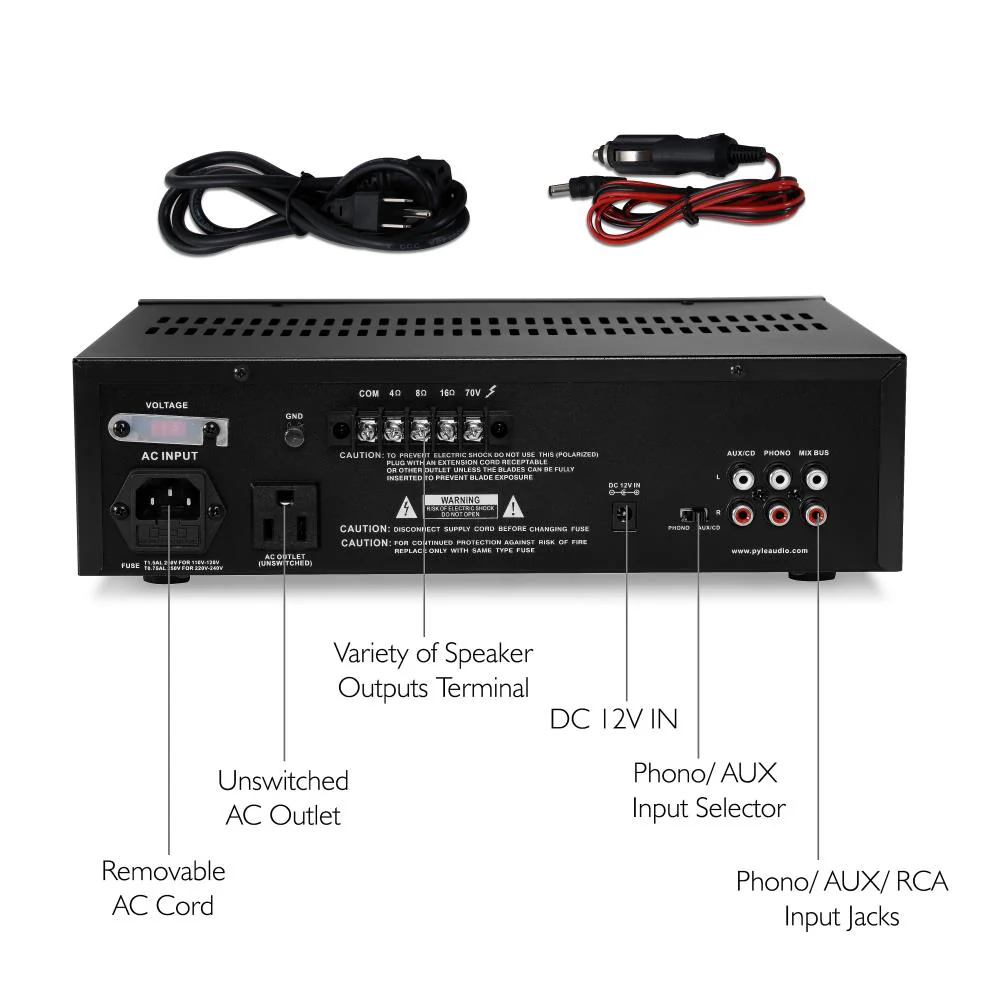

• Removable AC Cord
• Unswitched AC Outlet
• Phono/Aux/RCA Input Jacks
• Phono/Aux Input Selector
• Variety of Speaker Outputs Terminal
• USB/SD/FM/ LED Display & Bluetooth Features
• Includes Bluetooth Antenna to Improve Bluetooth Distance

Bluetooth Wireless Connectivity:

• Simple & Hassle-Free Pairing Ability
• Works with All of Today’s Latest Devices
• (Smartphones, Tablets, Laptops, Computers, etc.)
• Bluetooth Network Name: ‘PYLEUSA’
• Bluetooth Version: 5.0
• Wireless Range: 40’ + ft.

What's in the Box:

• PA Microphone Mono Amplifier
• Remote Control

Technical Specs:

• Power Supply: 80 Watt
• Power Output: 70V
• Voltage Selector: 120/240V
• Construction Material: Iron
• Frequency Response: 50Hz - 20kHz
• Battery Operated Remote, Requires (1) x CR-2025 Button Cell Battery, Included
• Impedance: 4 Ohm, 8 Ohm, 10 Ohm, 70V
• Product Dimension (L x W x H): 12.6’’ x 10’’ x 3.75’’ -inches

What's In The Box

PA Microphone Mono Amplifier

Remote Control

Specification

This 80-watt microphone amplifier takes your voice to the next level! The amplifier's wide frequency response makes it suitable for amplifying music or vocal program material. It can be used for live bands, office paging systems, public announcements, or a variety of other installations. It’s got two front ¼” inputs for mics, each with its own independent volume control and talkover. Plus, there’s two stereo RCA inputs on the back – including one that takes low level phono input from a turntable. Tone control lets you tweak the sound to your exact requirements. This amp is compatible with 70 V PA systems too. An unswitched outlet on the back means you’ll never be looking for an outlet. Runs on 110 and 220 V.

MANUALS & DOWNLOADS

PT110 - Manuals
