The Pyle Home Theater Amplifier Audio Receiver Sound System with Bluetooth Wireless Streaming, MP3/USB/SD/AUX/FM Radio (200 Watt) - Rack Mount Amplifier Receiver - 2.1 Channel Audio Amp Design - Bluetooth Wireless Audio Streaming Ability - USB Flash & SD Memory Card Readers - FM Radio with Digital LCD Display - ID3 Tag Readout Displays Song Title - Aux (3.5mm) Input Jack - Connect & Stream Audio from External Devices - Multi-Source RCA (L/R) Audio Input Connectors - (2) 1/4’’ Microphone Inputs - Spring-Loaded Speaker Terminals - Combo Screw-Type Banana Plug Speaker Jacks - RCA Subwoofer Output - Front Panel Button Control Center - Independent Input Source Selectable.

DETAILS

Features:

• Rack Mount Amplifier Receiver
• 2.1 Channel Audio Amp Design
• Bluetooth Wireless Audio Streaming Ability

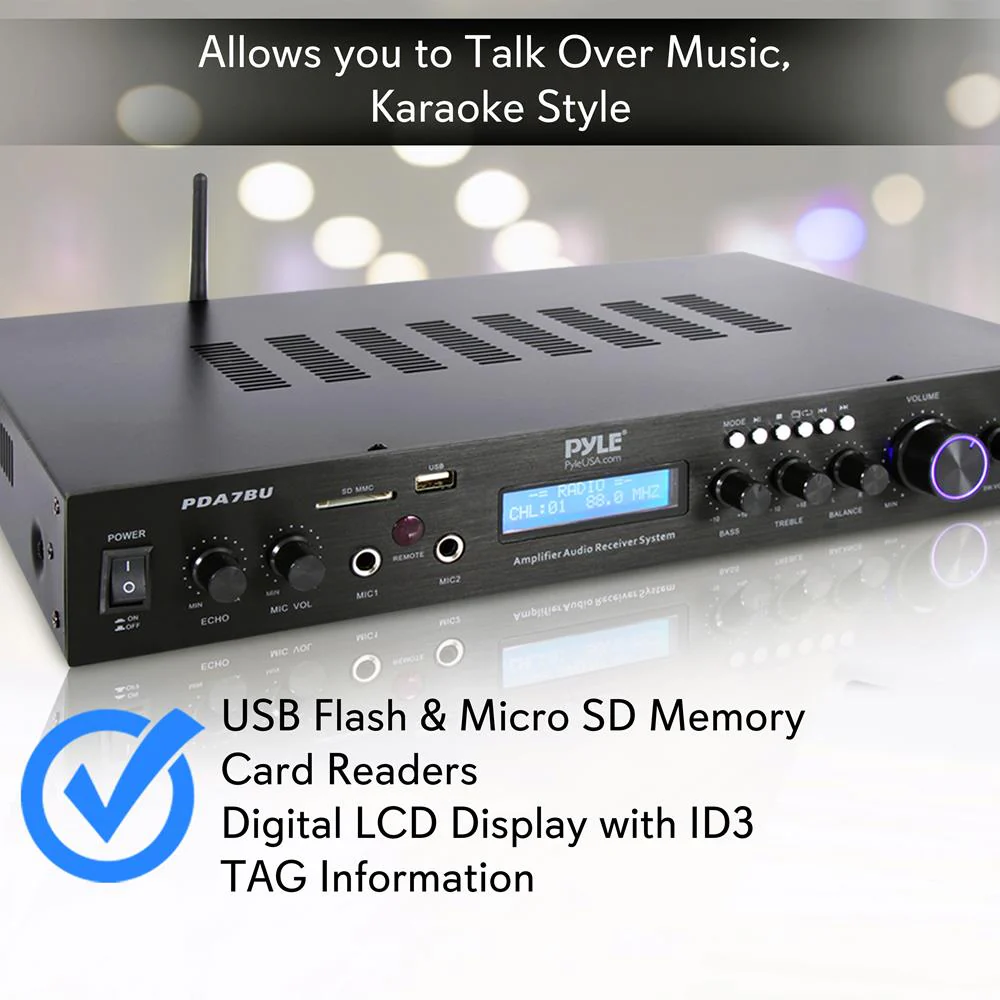

• USB Flash & SD Memory Card Readers
• FM Radio with Digital LCD Display
• ID3 Tag Readout Displays Song Title
• Aux (3.5mm) Input Jack
• Connect & Stream Audio from External Devices

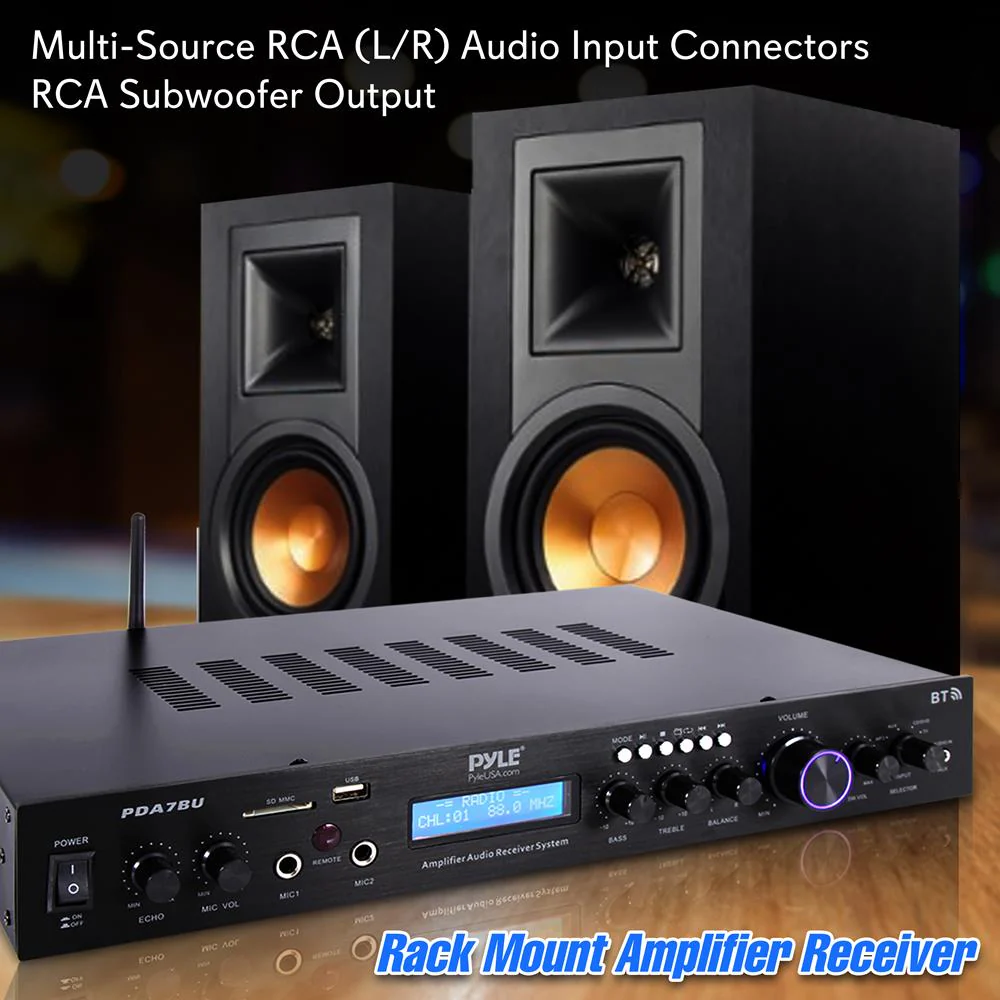

• Multi-Source RCA (L/R) Audio Input Connectors
• (2) 1/4’’ Microphone Inputs
• Spring-Loaded Speaker Terminals
• Combo Screw-Type Banana Plug Speaker Jacks
• RCA Subwoofer Output
• Front Panel Button Control Center
• Independent Input Source Selectable
• Bass, Treble, Balance, Source Volume Adjustable
• Includes Removable Rack Mount Brackets

Bluetooth Connectivity:

• Built-in Wireless Music Streaming Receiver
• Compatible with All of Your Favorite Bluetooth Devices
• (iPhone, Androids, Smartphones, iPad, Tablets, etc.)
• Bluetooth Version: 2.1
• Wireless Range: 30’+ ft.

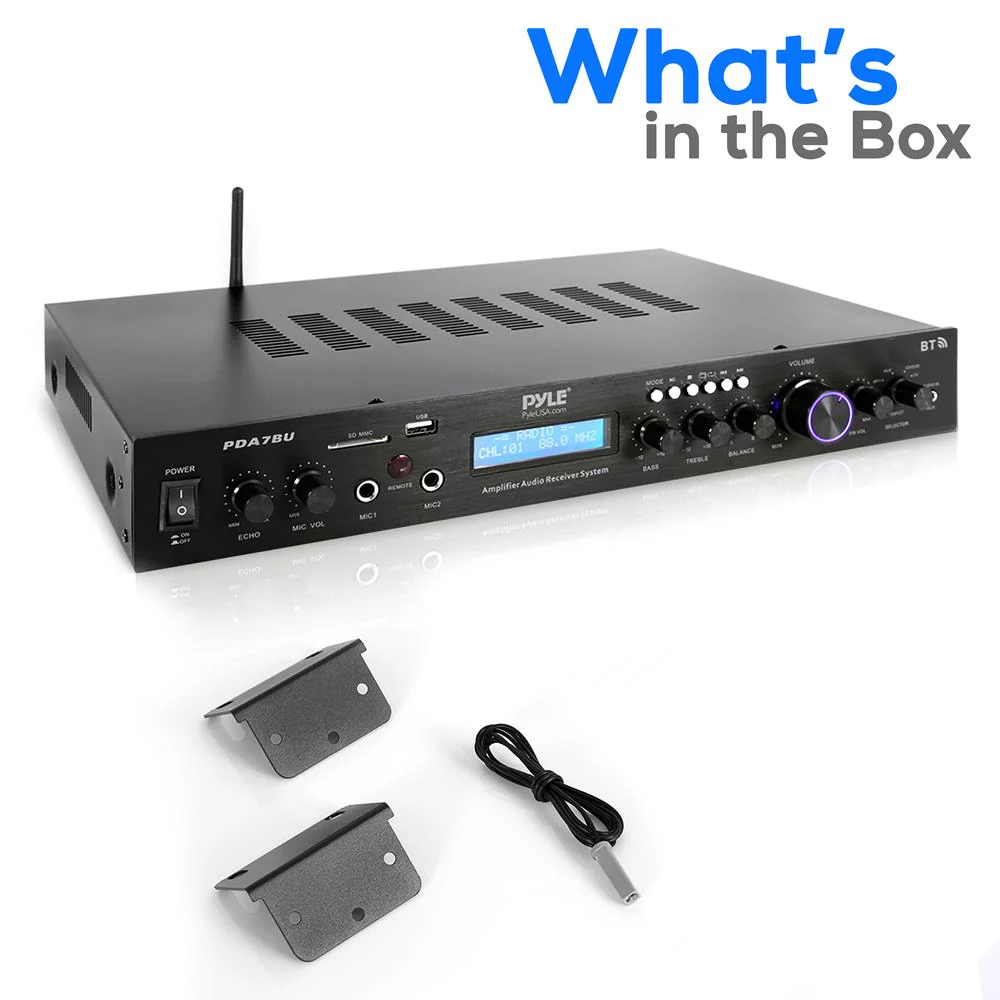

What’s in the Box:

• Amplifier Receiver
• Remote Control
• Detachable Hardware Rack Mounts
• FM Antenna

Technical Specs:

• MAX Power Output: 200 Watt @ 4 Ohm
• RMS Power Output: 100 Watt x 2 @ 8 Ohm
• Rated Input currency: 75mA, 8-Ohm Speaker Loaded (30mA, No Load)
• Construction Material: Metal, Aluminum Alloy Panel
• Frequency response: 20-20KHz, +/-2dB
• S/N Ratio: >85dB
• T.H.D.: <1.0%
• Input sensitivity: 200mV (Max Output: 6000mV)
• Maximum USB Flash & SD Memory Card Support Size: 32GB
• Digital Media File Support: MP3, WAV
• Battery Operated Remote Control, Requires 3V Lithium Coin Cell
• Power Cable Length: 4.5’ ft.
• Power: 110/240V, Switchable
• Dimensions (L x W x H): 19.0’’ x 9.8’’ x 2.2’’ -inches

What's In The Box

Amplifier Receiver

Remote Control

Detachable Hardware Rack Mounts

FM Antenna

MANUALS & DOWNLOADS

PDA7BU - Manuals
